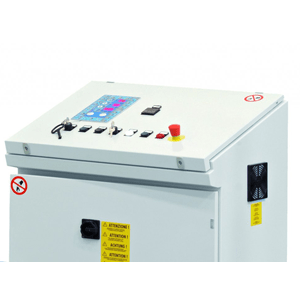

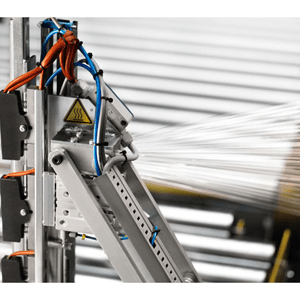

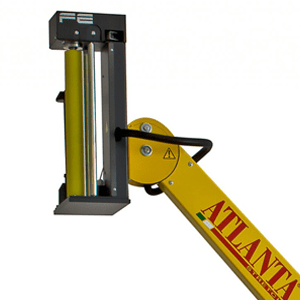

MYTHO STATION
The MYTHO Auto simplifies the automated pallet wrapping process. It reduces costs without any reduction in quality or speed. Operators load pallets onto the turntable and start the machine. From that point on, the process of wrapping the pallet is fully automated. This includes the film tail being cut and the option of welding the tail against the pallet. Operators then finish the process by unloading the wrapped pallet from the turntable.

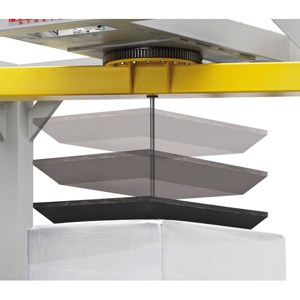

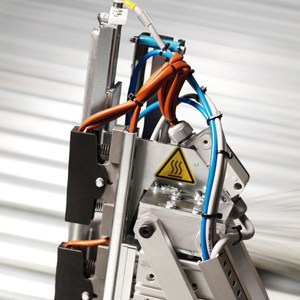

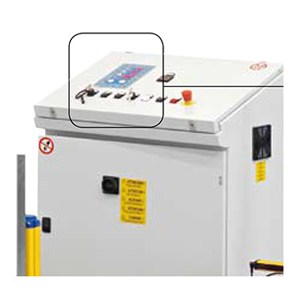

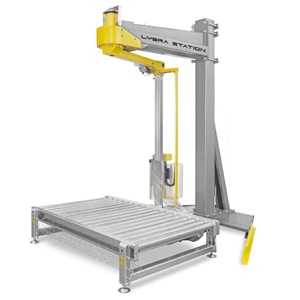

LIBRA STATION
The LIBRA model is an automatic rotating arm palletwrapper.
Characteristics:
- Standard pallet diagonal 1710 mm (pallets 1200 x 1200 mm), optional diagonal palette 1980/2120/2260 / 2400mm
- Adjustable hand rotation speed with frequency regulator Max 12 rpm *
- Carriage braking system (FTL = Magnetic load braking force)
- Standard wrapping height 2500 mm, optional height 3000 mm
- Electrical and motor protection system IP 54
- Output capacity 30 pallets per hour **
** Stretching conditions and pallet dimensions affect the maximum output capacity

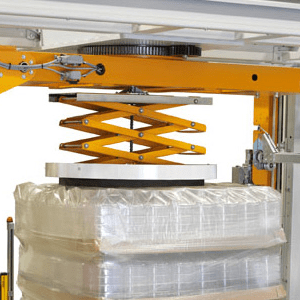

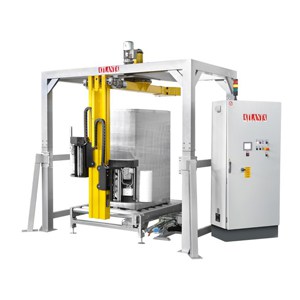

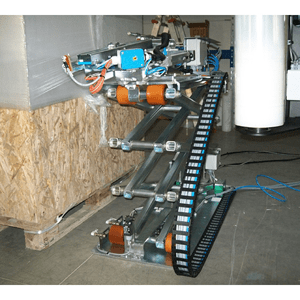

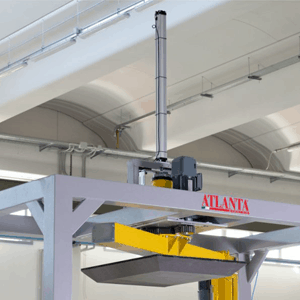

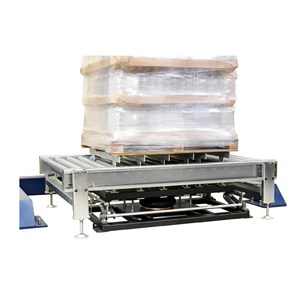

REVOLUTION LS/HS DOUBLE
The REVOLUTION model has all the advantages of a standard REVOLUTION LS / HS model; however, this system is equipped with two foil holders of your choice. It is a unique offer on the market and guarantees an increase in production by at least another 25%.
Standard pallet of 1710 mm (1100 x 1300 mm pallets), optional 2000/2270/2540/2970/3250/3390/3800/4200 / 4600mm
Adjustable turning speed of the handle facilitated by a frequency changer Max 30 rpm *
Carriage braking system (FTL = Magnetic load braking force)
Standard height 2000 mm, optional 2200/2700/3000/3300/3700 mm
Detection of goods height by photocell
Total installed power 5 Kv
Standard voltage 400 V – 50/60 Hz – 3 Ph + N + T
Power and motor protection system IP 54
Output capacity LS 95 pallets per hour ** / Output capacity HS 100 pallets per hour **
** Wrapping conditions and pallet dimensions affect the maximum output capacity
